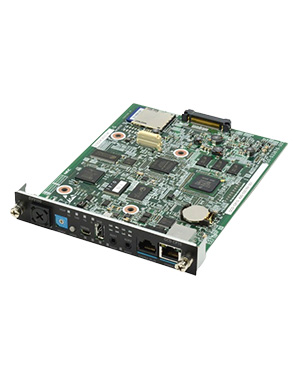

NEC GCD-CP20 Main Processor Blade
The NEC GCD-CP20 is the main processor blade for the UNIVERGE SV9100 communications platform.
It is designed to handle the system's central processing, including call control and management.
Technical Specifications & Features
- System Platform: Specifically for the UNIVERGE SV9100.
- CPU: Main processor board (part number #BE119025).
- Storage Requirements: Requires a specific SD card (e.g., SD-A2 or SD-B2) for software and voicemail storage.
- SD-A2 (1GB): Typically for main software and basic VRS/VM needs.
- SD-B2 (4GB): For expanded storage and messaging capabilities.
- Built-in Capacity:
- Voicemail: Embedded InMail with up to 16 ports and 120 hours of recording (with license).
- Conferencing: Supports up to 32-port conference bridges.
- Networking: Supports NetLink for multi-node system expansion.
Environmental & Physical Specifications
- Operating Temperature: 0°C to 40°C (32°F to 104°F).
- Humidity: 20% to 90% RH (non-condensing).
- Chassis Compatibility: Can be installed in CHS2UG-US or CHS2UG B-US chassis.
Upgrade Path
- The CP20 replaces the older CP10 processor.
- Upgrading from a CP10 to a CP20 allows the system to run the latest Version 9.x or 10.x software.
- Licenses are typically transferable from the CP10 to the CP20 via the License Management System (LMS).
For further detailed technical diagrams, you can refer to the SV9100 System Hardware Manual.
